- SoC: Broadcom BCM2711C0 quad-core ARM Cortex-A72 (ARMv8-A) 64-bit @ 1.5GHz
- GPU: Broadcom VideoCore VI
- RAM: 1GB, 2GB, 4GB, or 8GB LPDDR4 SDRAM
- Networking: THIS MODULE DOES NOT CONTAIN WI-FI

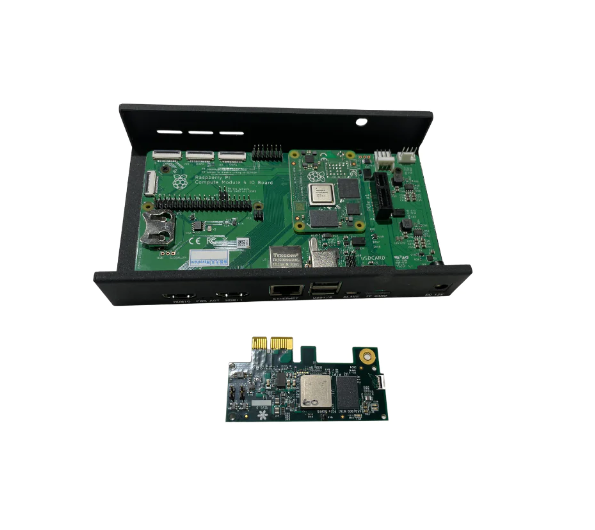

- Includes Akida on PCIe Board installed in the development kit
- Includes Meta TF Software Development Environment
|
- GPIO: Carrier board dependent
- Interfaces: PCI Express, 2× DSI, 2× CSI, 2× HDMI
-
Small form factor PCIe 1.6”x3
- Storage: External (CM4 Lite); on-board 8GB/16GB/32GB eMMC (CM4)
- Ports: Hirose U.FL antenna connector, 2× 100-pin high-density connectors
- 20.06cm x 10.5cm x 3.7cm (exc. carrier board)
- Bluetooth: Optional Bluetooth 5.0 and Bluetooth Low Energy (BLE)
- Includes User Guide and examples of Akida Models
|
