DK-EDGEBX-AKD1
+ 2 more
What's in the box

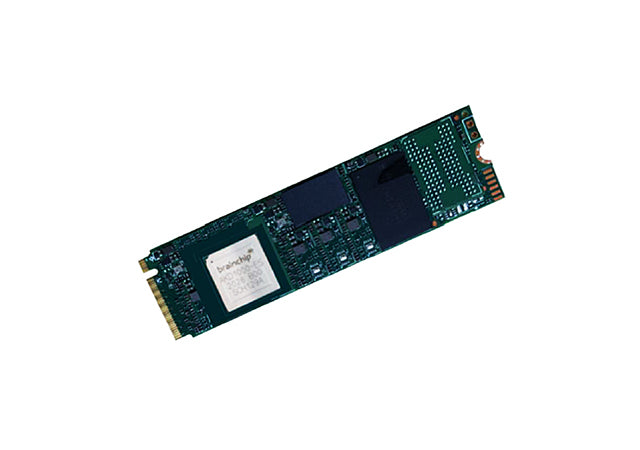

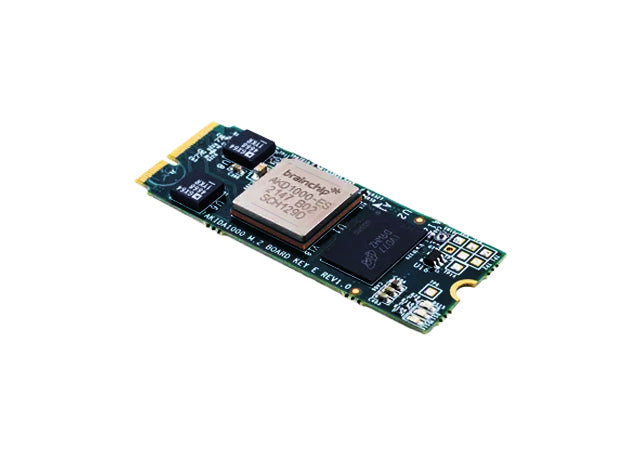

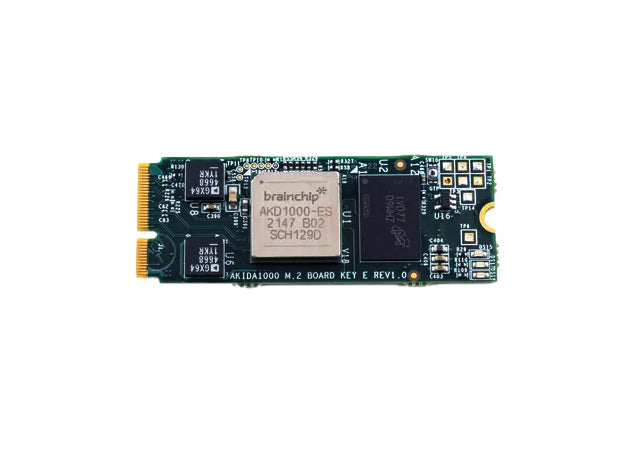

- Akida M.2 2280 board (AKD1000 + flash + PMIC)
- 1m flat-flex PCIe interconnect cable
- Standoffs and M2.5 hardware (×4)
- Quick-start card · printed pinout reference
- MetaTF SDK 3.4.1 license key (printed)
Designed for
Keyword spotting
30 mW · always-on
Visual wake-word
Sub-5 mW idle
Anomaly detection
On-chip learning
Vital-sign sensing
Radar + Akida
Quick Start
-

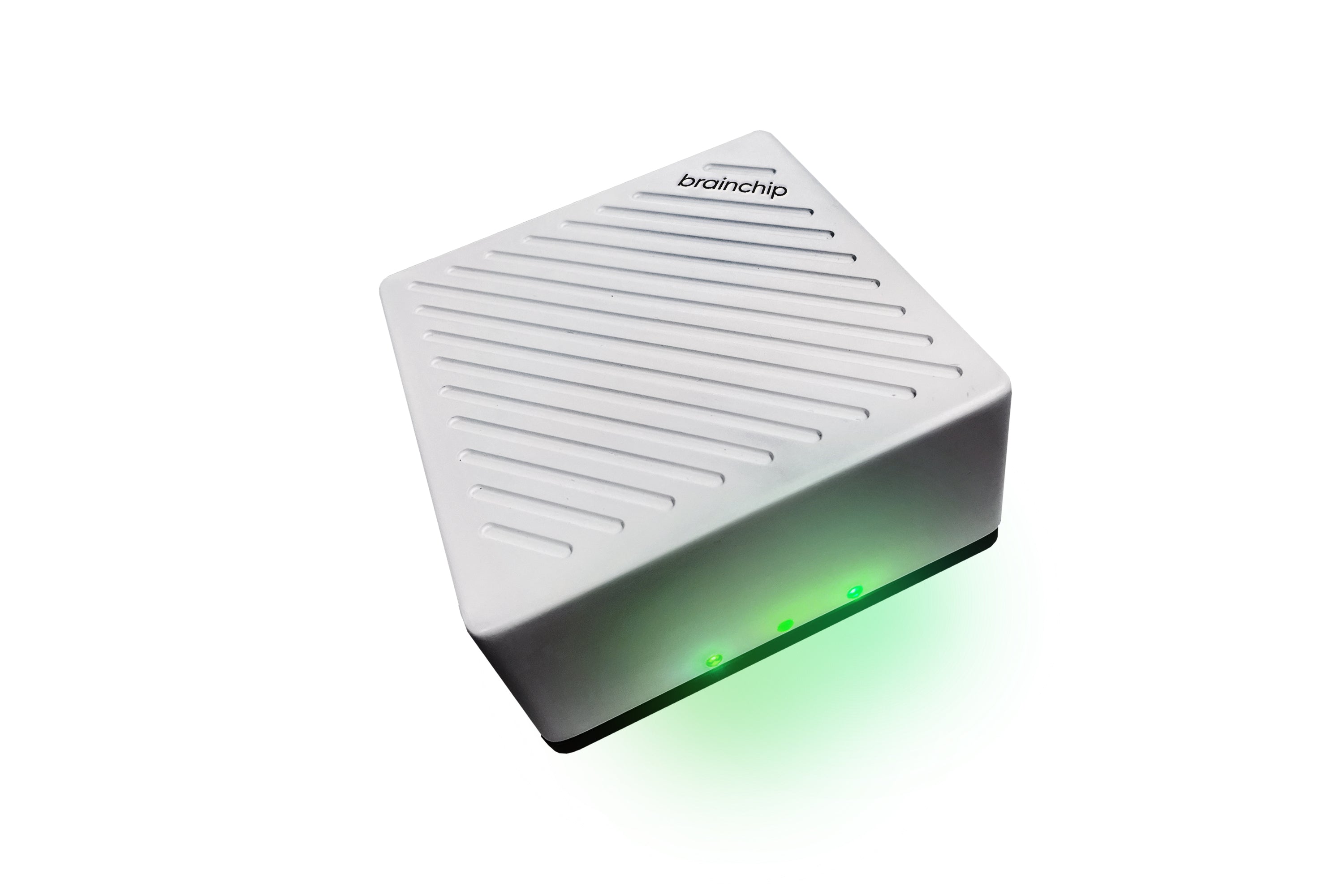

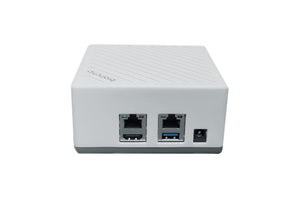

1. Unbox and power onConnect the 12VDC adapter and press the power button. LED turns green when ready.
-
2. Install MetaTF SDKRun pip install akida on your connected host machine to install the SDK and dependencies.
-
3. Run your first modelLaunch any of the included example notebooks and deploy a model to the Akida accelerator over PCIe.
Processor
Architecture
Akida 1.0 neuromorphic
NPU Count
1024
Performance
1.0 TOPS
Quantization
1 / 2 / 4 / 8 bit
Power
Typical
30 mW (KWS workload)
Maximum
100 mW
Wake Latency
less than 200 µs
Interface
Host
PCIe Gen3 x4
AUX
I2C 400 kHz · PDM 3.072 MHz
Reset / Wake
Active-low GPIO
Form Factor
M.2 2280 M-key
Environmental
Operating Temp
-40°C to +85°C
Storage Temp
-55°C to +125°C
Humidity
5% to 95% non-condensing
Shock / Vibration
MIL-STD-810G method 514.6
Compatible boards, cables, and reference platforms.
