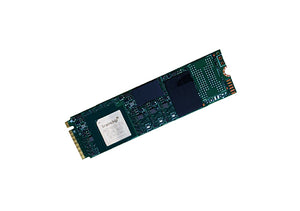

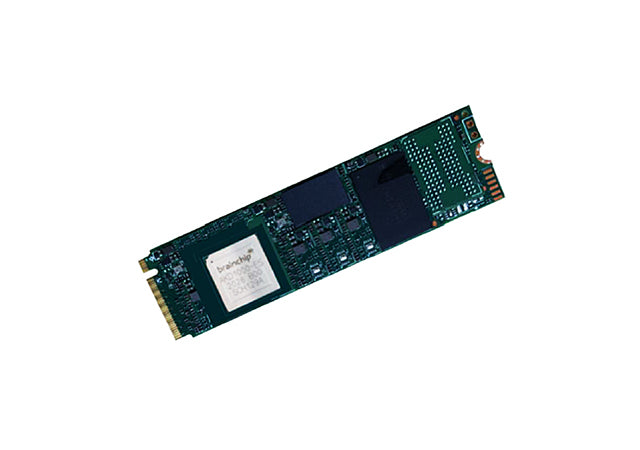

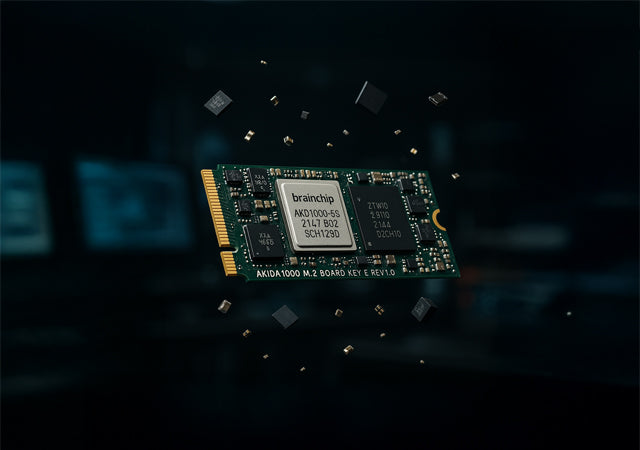

      Akida™ M.2 Card
      Akida™ M.2 Card
      Akida™ M.2 Card

      Akida™ M.2 Card

      $249.00

      Purchasing greater than 10 M.2 cards?
      Contact sales@brainchip.com

      Systems specifications may vary based on component availability. Images are proofs and may have a slight variation to the finished product. Shipment is estimated 7 days from the time of purchase. Delivery times may fluctuate based on supply chain availability.

      (7) items left

      Specifications

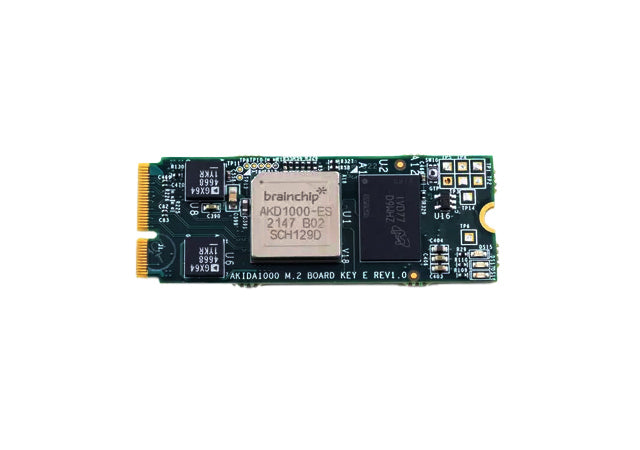

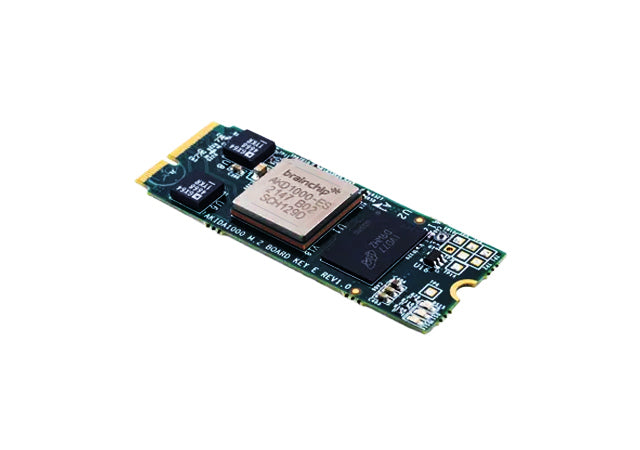

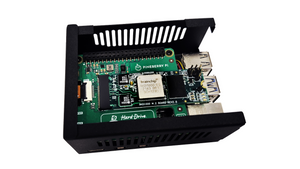

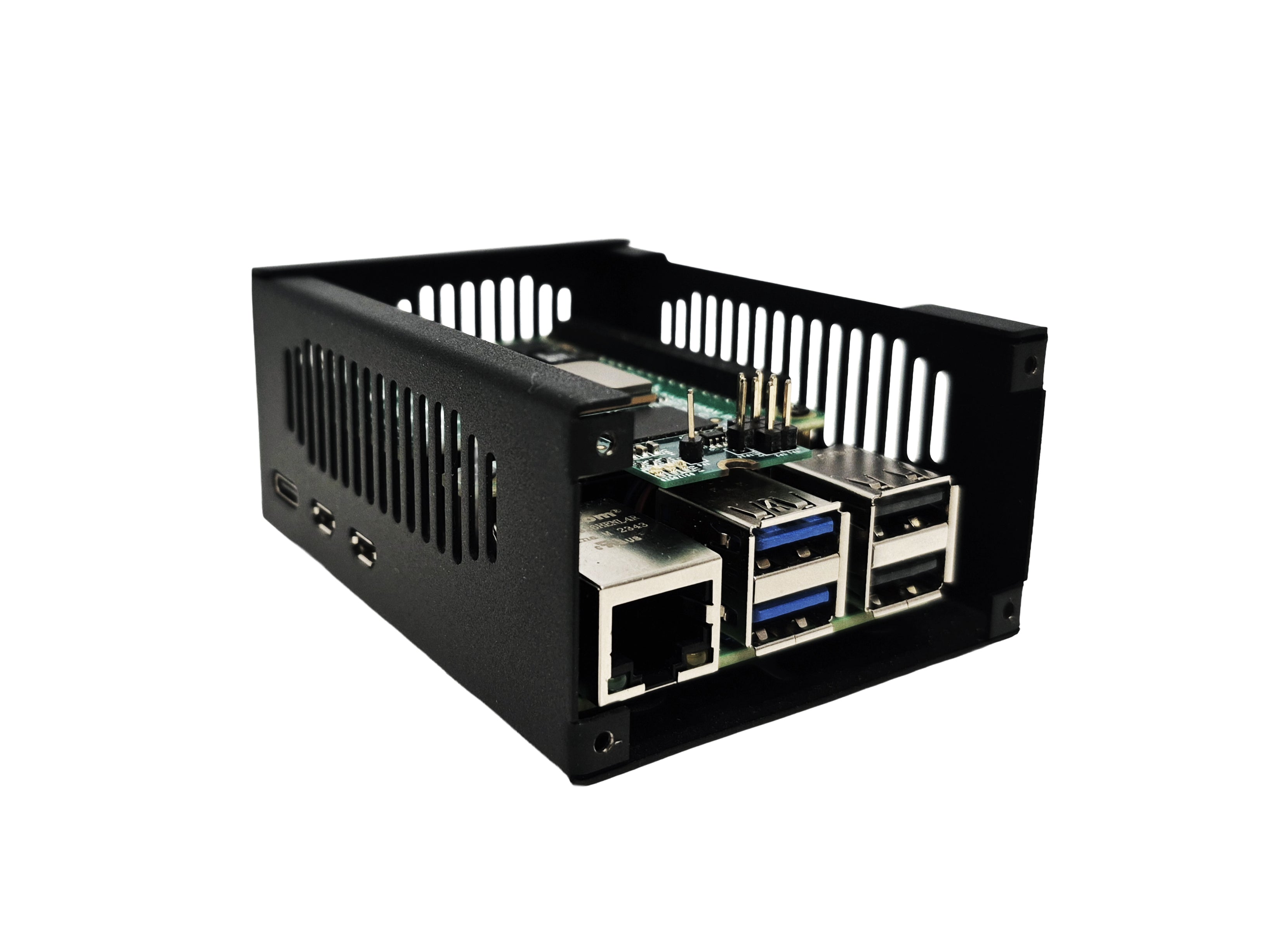

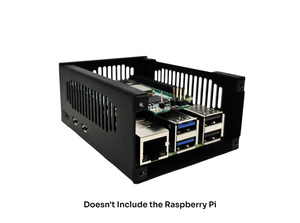

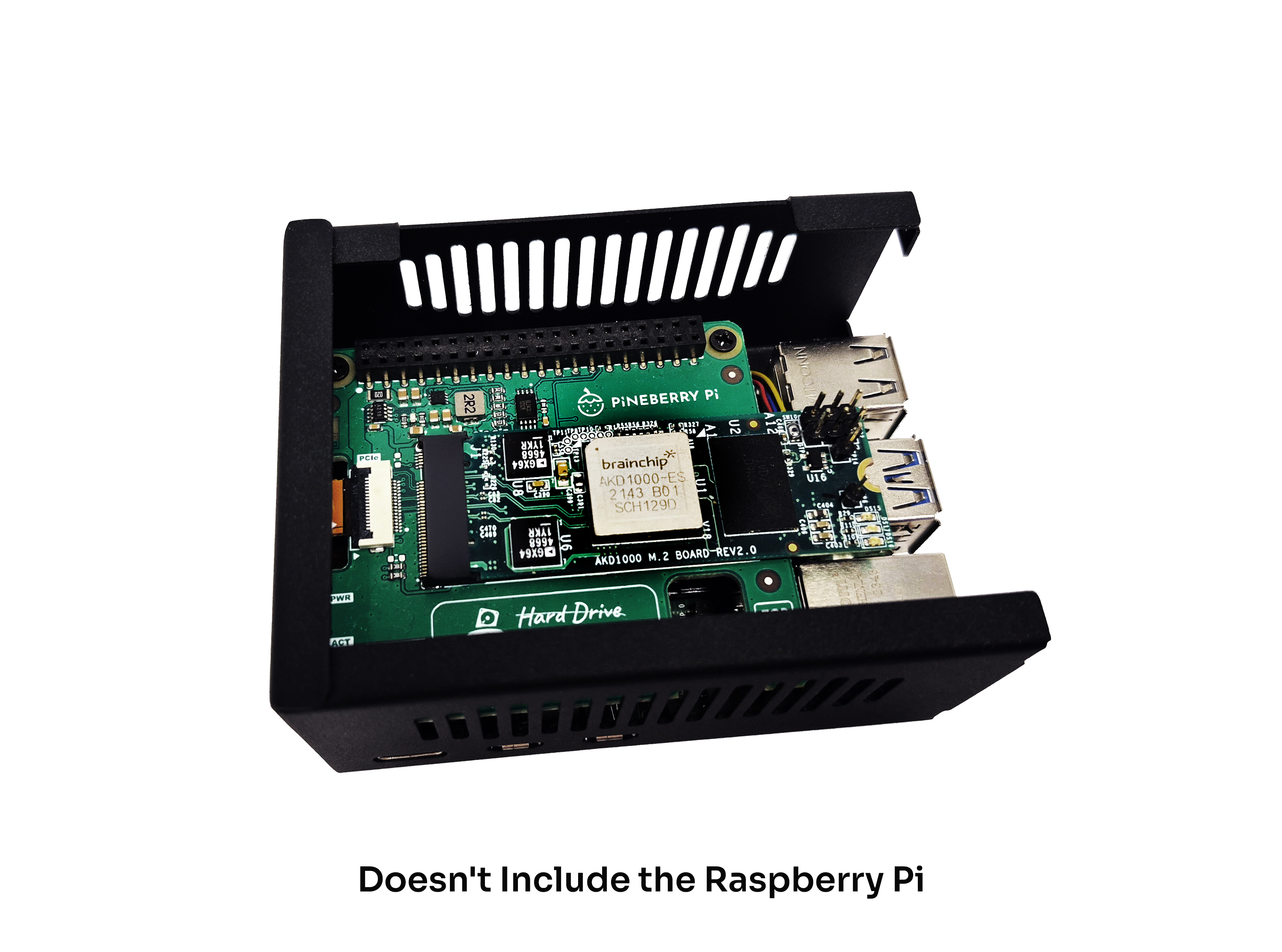

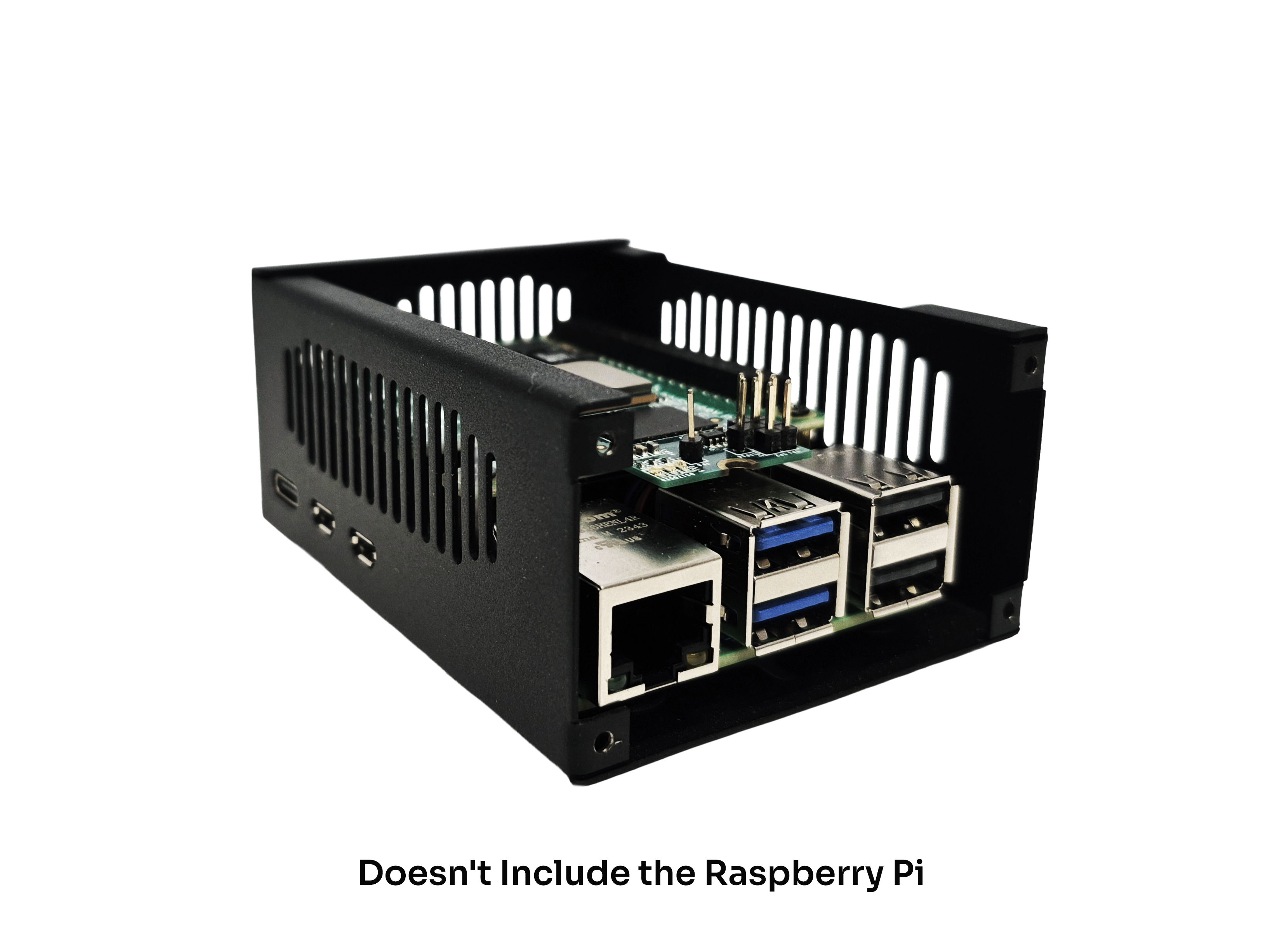

      Akida M.2 Card, powered by AKD1000 IC with an ARM M.4 CPU plus 20 Akida 1.0 event-based processing NPUs in a mesh.​ Akida M.2 AKD1000 Card accelerates CNN-based neural network models using BrainChip’s ultra energy-efficient, and purely digital, event-based processing architecture.

      The Akida M.2 AKD1000 can be paired with existing Single-Board Computers to enable edge AI applications. It’s low power consumption supports the creation of very compact, low-power, portable and intelligent devices for remote sensors in Healthcare, Enterprise, Industrial, Smart Office, Store and AIoT applications.
      • Download Product Brief
      • Form factor: M.2 2260, B+M Key and E Key available
      • Host interface: PCIe PHY 2-lane
      • Memory interface: LPDDR4 via DMA
      • CPU: 32bit ARM M.4
      • NPU: 20 x Akida 1 Neuron mesh
      • Peak INT8 GOPs: 1.5 TOPs
      • On-chip memory: 8MB high-speed nearcompute SRAM
      • Clock frequency: 300MHz
      • Operating temperature: 0 – 70°C
      • Thermal solution: no fan or heatsink required
      • Typical application power: 1W
