BD-PCIE-M210BM
What's in the box

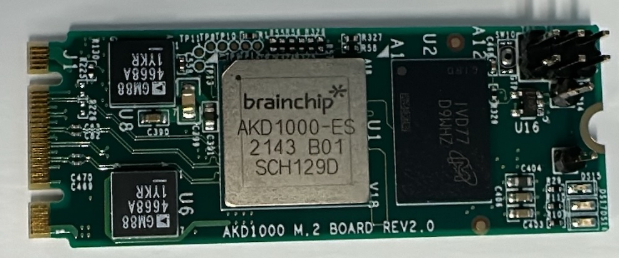

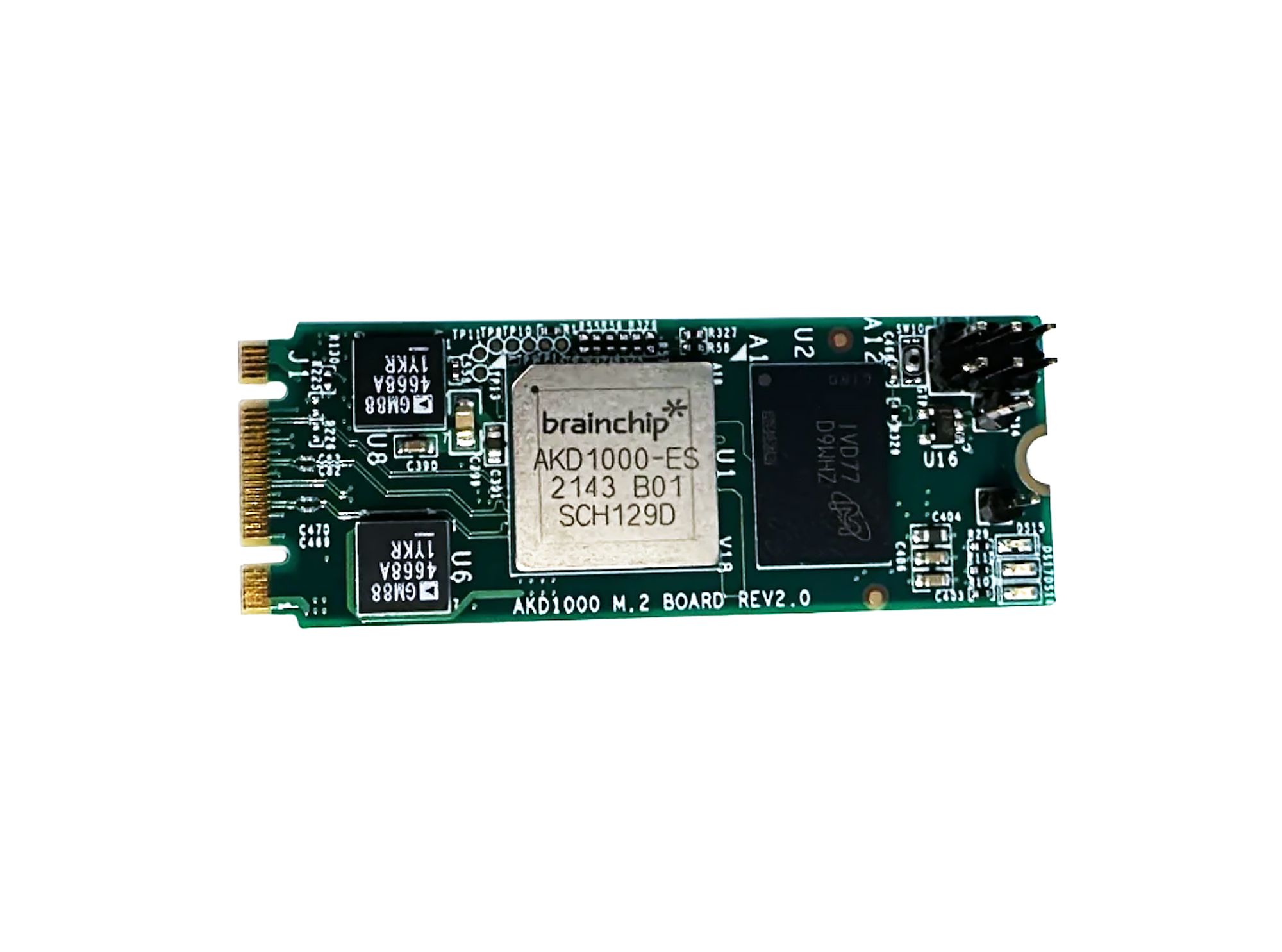

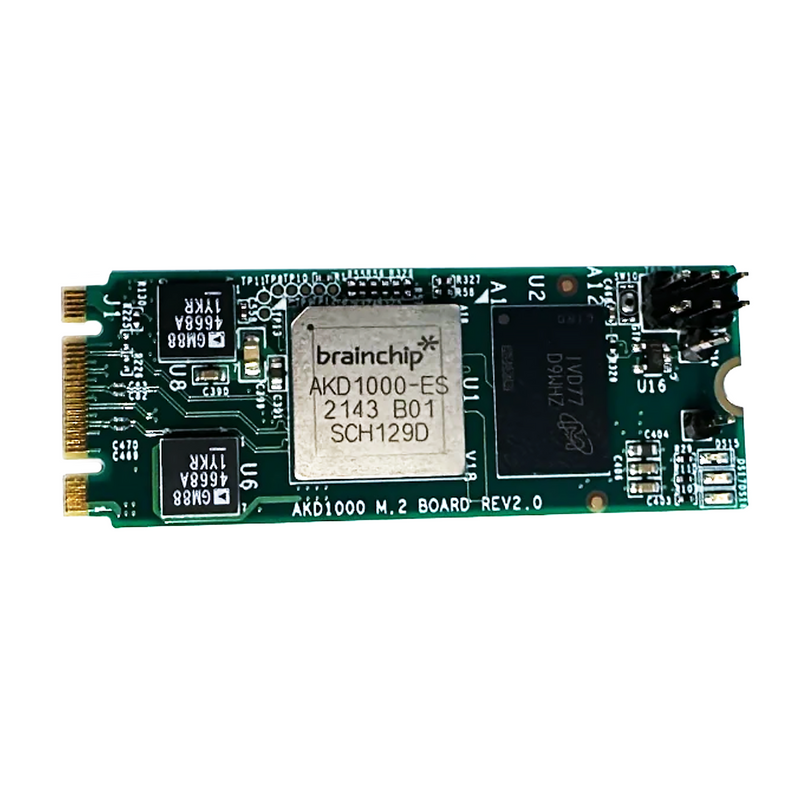

- AKD1000 M.2 Card B+M Key (M.2 2260 form factor)
Designed for
Drop-In AI Acceleration
Healthcare & Remote Sensing
Industrial & AIoT Applications
Smart Home & Consumer Devices
Quick Start
-
1. Power off host system
-
2. Slide the M.2 card into an M.2 2260 B+M Key slot at an angle
-
3. Press flat and secure with the retention screw
-
4. Power on and install the Akida driver
Form factor
M.2 2260, B+M Key
Host interface
PCIe PHY 2-lane
Memory interface
LPDDR4 via DMA
CPU
32-bit ARM Cortex-M4
NPU
20 × Akida 1.0 neuron mesh
Peak performance
1.5 TOPs (INT8)
On-chip memory
8MB near-compute SRAM
Clock frequency
300MHz
Power
~1W typical
Operating temperature
0–70°C
Thermal
Fanless, no heatsink required

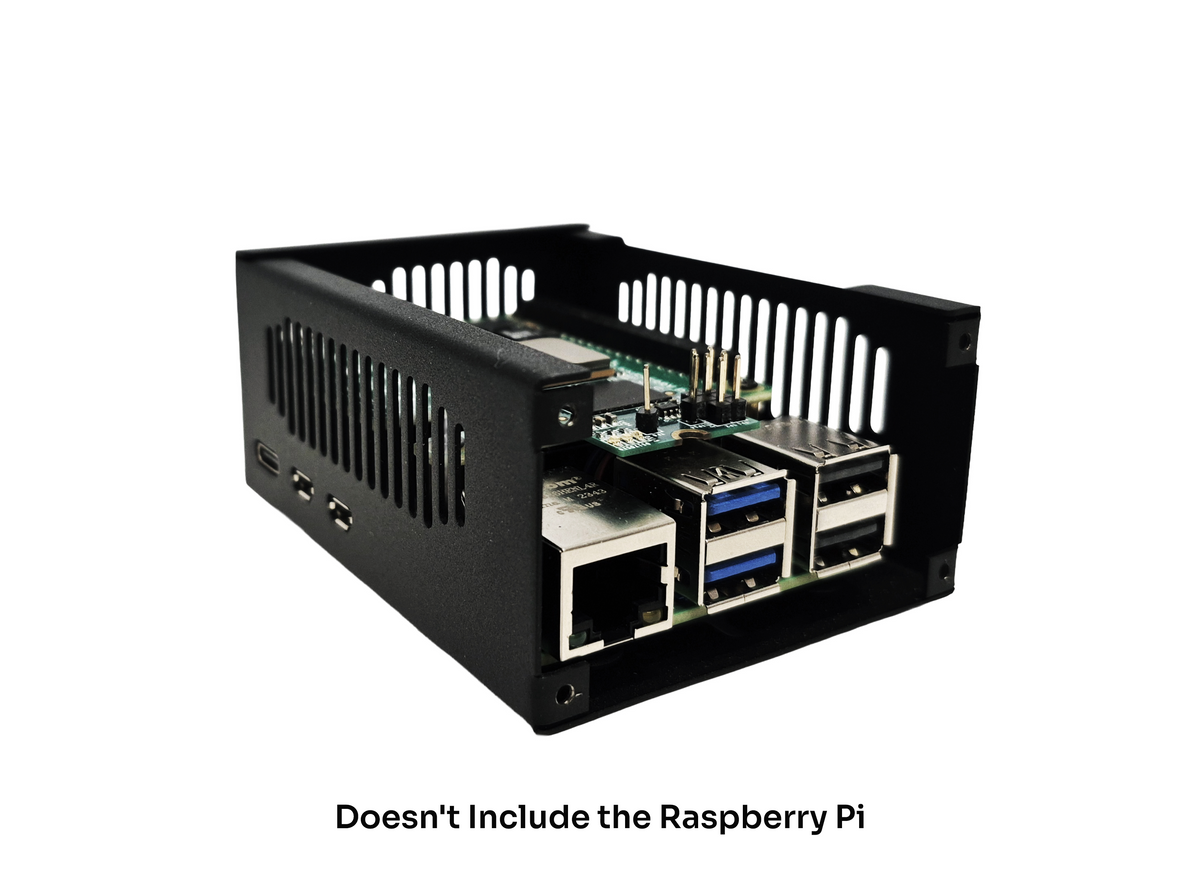

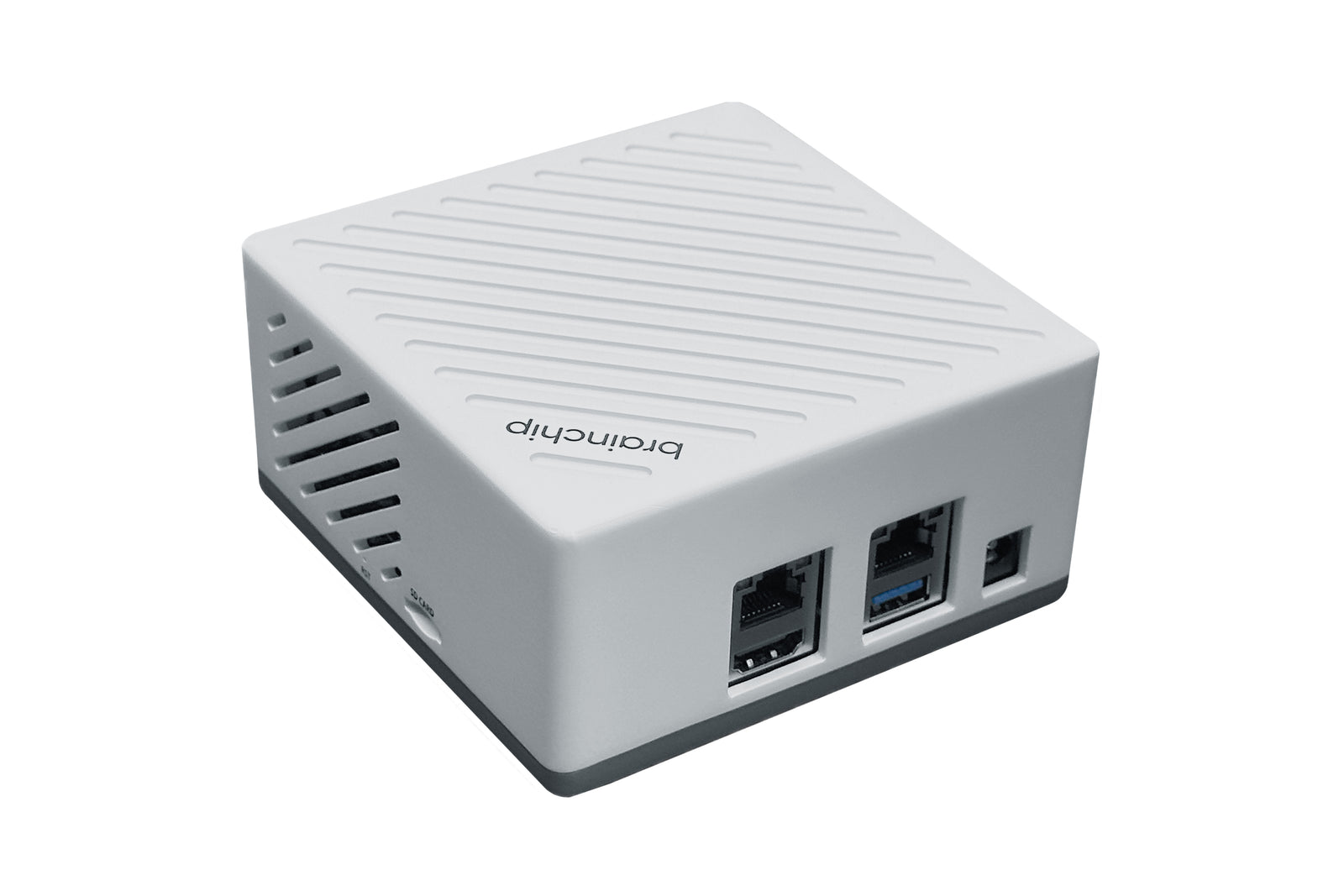

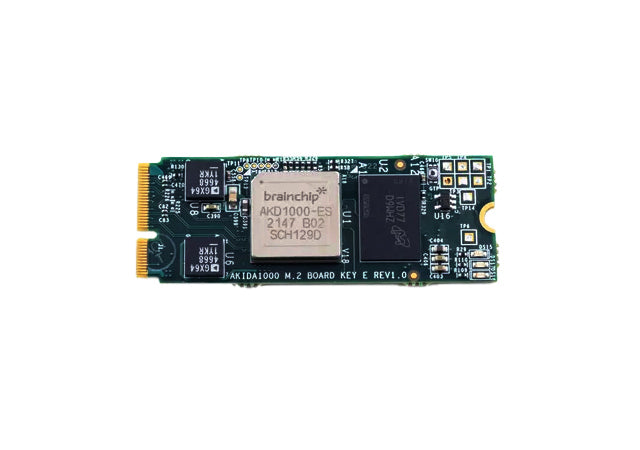

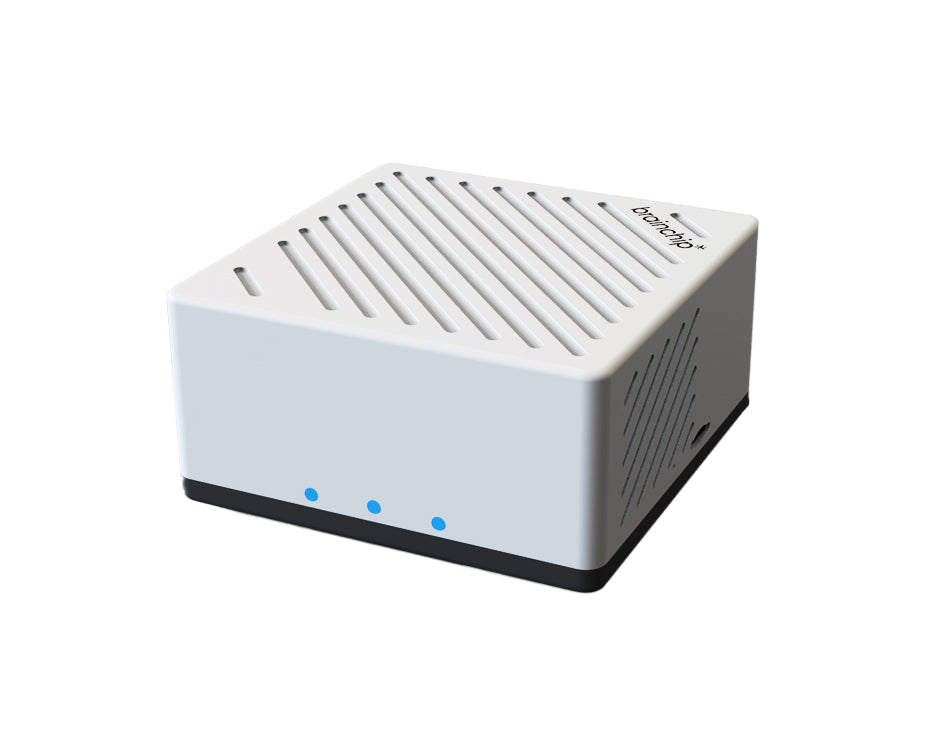

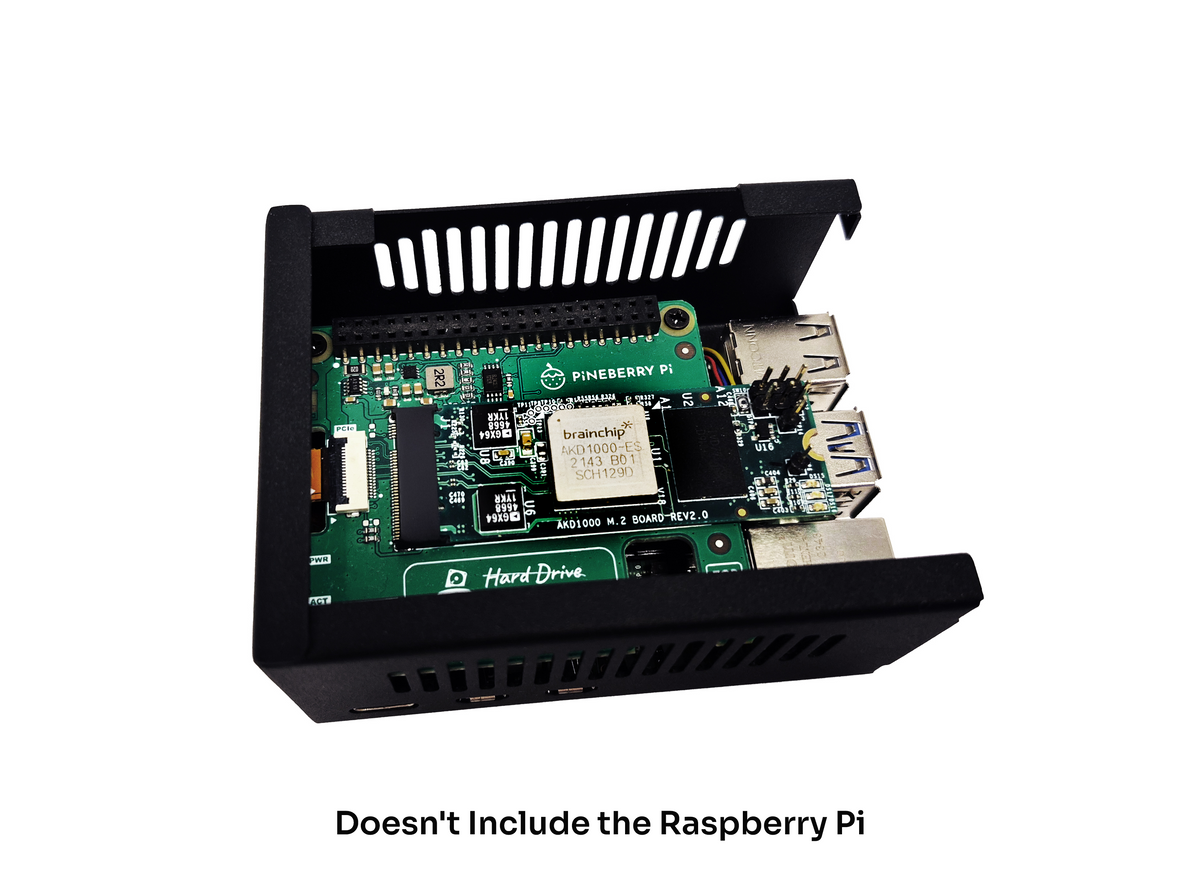

Compatible boards, cables, and reference platforms.
