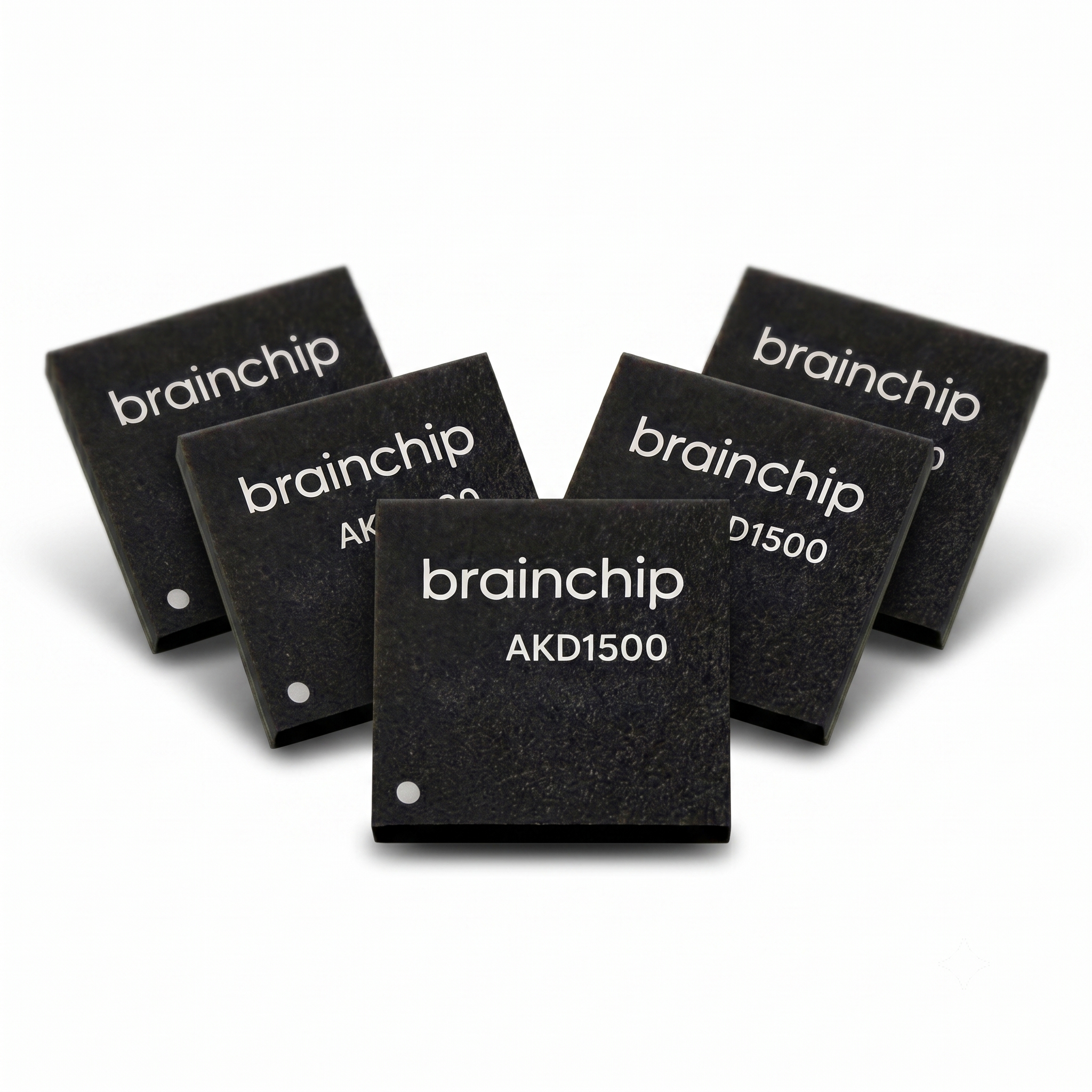

AKD1500PFC040BA-5PK
+ 1 more
Designed for
Edge AI Vision Systems
ADAS/AV, Robotics, Drones, Surveillance
Industrial IoT & Predictive Maintenance
Ultra-low-power sensor fusion
Smart Home, Appliances & Voice Control
Always-on keyword spotting
On-Device Personalized Learning
Secure on-chip adaptation, no cloud
Part Number
AKD1500PFC040BA
Architecture
Akida neuromorphic co-processor
Process
22nm FD-SOI CMOS digital logic
Package
7×7mm MFCTFBGA169, 0.5mm pitch
Peak performance
800 effective GOPS at <1mW/GOPS
On-chip memory
1MB SRAM
Host interface
PCIe Gen2 endpoint
Memory expansion
SPI D/Q/O interface
Clock frequency
5–400 MHz
Power dissipation
250mW typical at 400MHz
On-chip learning
Yes (no cloud required)
Software
MetaTF (TensorFlow/Keras, PyTorch APIs)
Temperature
0~70 degree (commercial temp)
Compatible boards, cables, and reference platforms.
