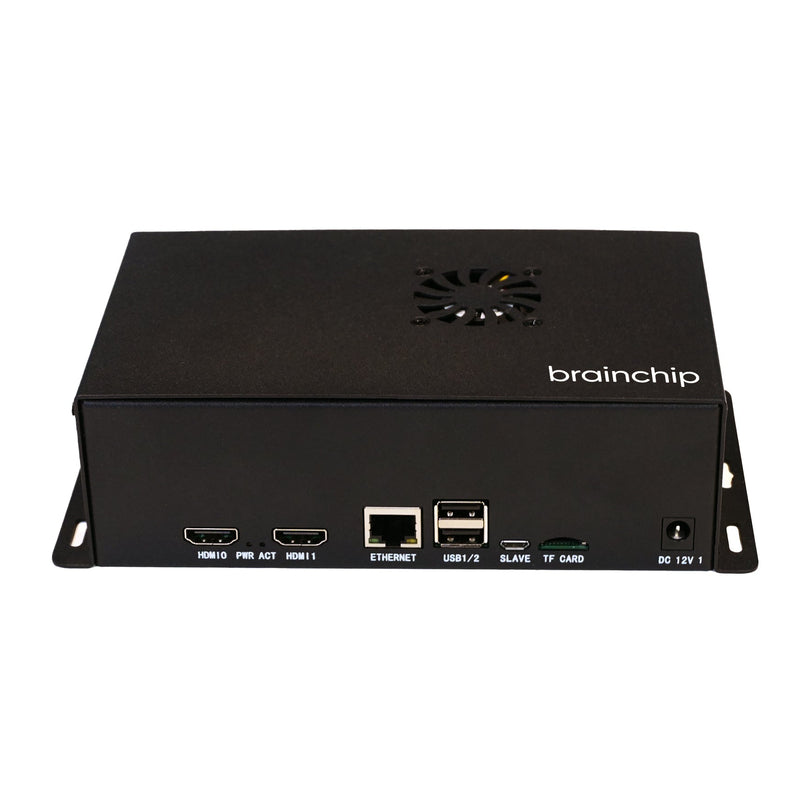

Akida™ Development Kit - Raspberry Pi

Specification

Systems specifications may vary based on component availability. All development kits will include the Akida processor. Images are proofs and may have a slight variation to the finished product.  DEVELOPMENT KITS ARE NOT INTENDED TO BE USED FOR PRODUCTION PURPOSES

  • SoC: Broadcom BCM2711C0 quad-core ARM Cortex-A72 (ARMv8-A) 64-bit @ 1.5GHz
  • GPU: Broadcom VideoCore VI
  • RAM: 1GB, 2GB, 4GB, or 8GB LPDDR4 SDRAM
  • Networking: Optional 2.4 GHz and 5 GHz 802.11b/g/n/ac Wi-Fi, Gigabit Ethernet PHY
  • Includes Akida on Mini PCIe Board installed in the development kit
  • Includes Meta TF Software Development Environment
  •  GPIO: Carrier board dependent
  • Interfaces: PCI Express, 2× DSI, 2× CSI, 2× HDMI
  • Storage: External (CM4 Lite); on-board 8GB/16GB/32GB eMMC (CM4)
  • Ports: Hirose U.FL antenna connector, 2× 100-pin high-density connectors
  • 20.06cm x 10.5cm x 3.7cm (exc. carrier board)
  • Bluetooth: Optional Bluetooth 5.0 and Bluetooth Low Energy (BLE)
  • Includes User Guide and examples of Akida Models.
